Using Memory Protection Data

Smart overview of the Invention

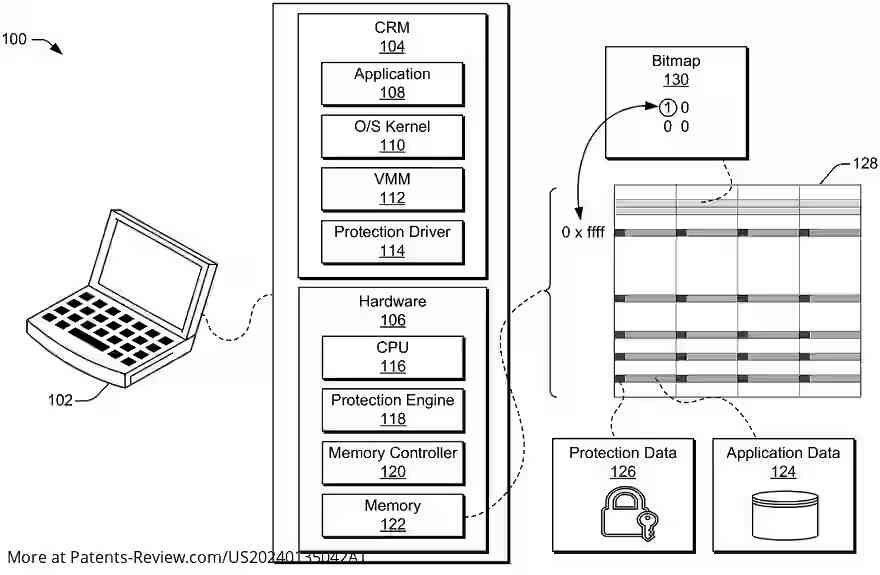

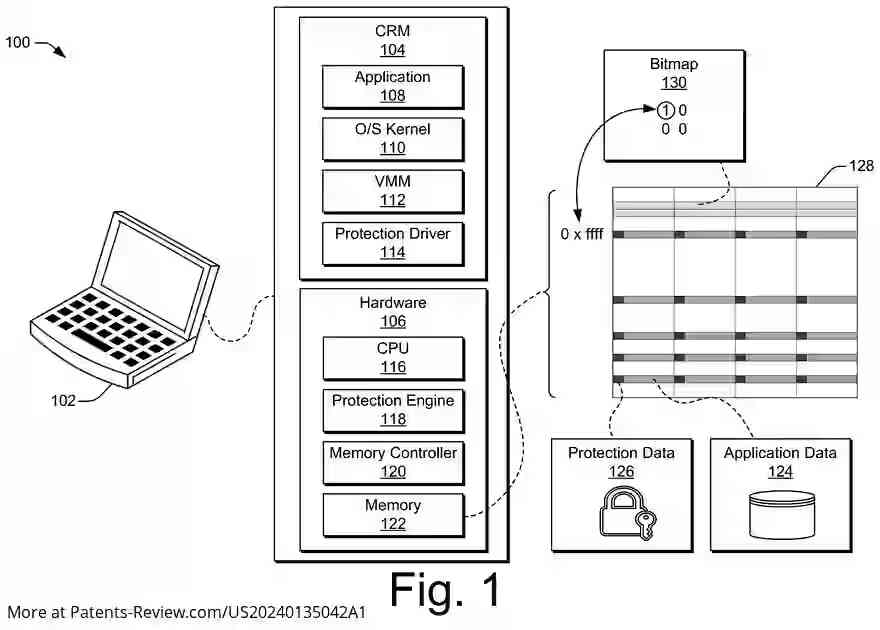

Techniques and apparatuses for utilizing memory protection data in computing devices are described, focusing on efficient memory management. These methods involve allocating specific regions of memory for both application data and associated protection data, alongside creating a bitmap that indicates the presence of these data types in memory blocks. Such innovations aim to minimize memory overhead by optimizing memory usage and streamlining transactions within the device.

Importance of Security and Functional Safety

Ensuring security and functional safety is crucial for computing devices, especially for applications that handle sensitive information or critical operations. Various algorithms, including encryption and error correction codes (ECC), are employed to enhance data integrity. However, conventional memory protection methods often introduce significant overhead, leading to inefficient memory utilization and potential performance degradation.

Challenges with Existing Techniques

Current methods for employing protection data face several drawbacks. These include increased memory capacity requirements—potentially up to 20% more—to accommodate both application and protection data. Additionally, techniques that allow fragmented allocations often necessitate substantial modifications to operating system memory management, complicating the process and potentially affecting performance.

Innovative Bitmap Approach

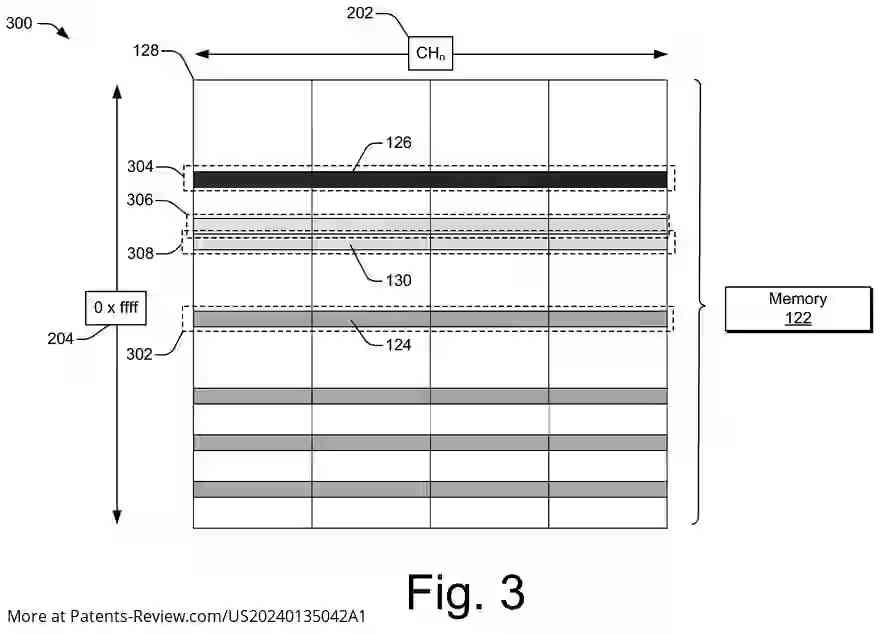

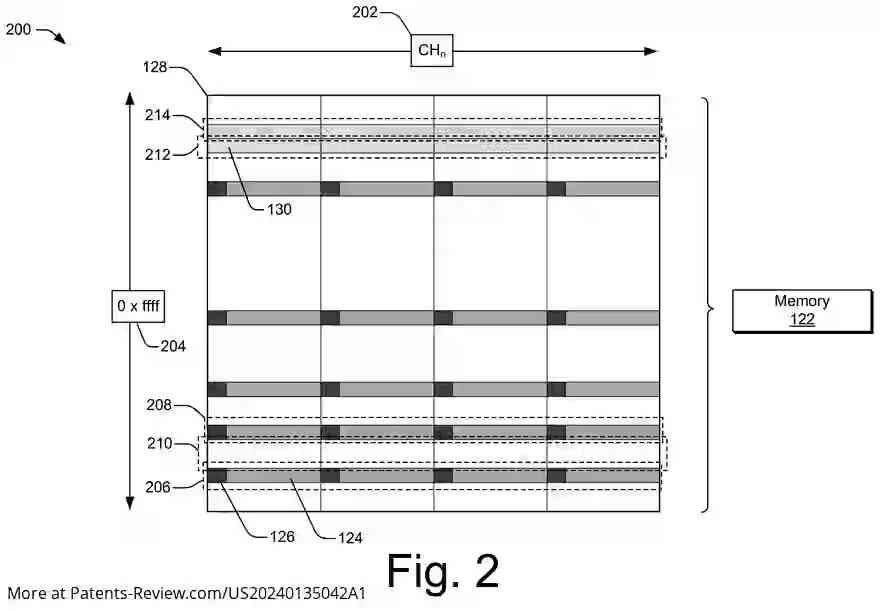

The introduction of a bitmap system represents a significant advancement over traditional methods. This approach allows for flexible allocation of fragmented memory, reducing overall capacity usage while maintaining effective memory protection. The bitmap enables hardware to efficiently identify which blocks contain application or protection data without extensive changes to the operating system's memory management processes.

Benefits of the Proposed System

Utilizing a bitmap not only simplifies the allocation of memory but also enhances operational speed by reducing the number of required memory accesses. This leads to lower power consumption and improved performance overall. By minimizing overhead and enabling independent allocation for protection data as needed, the proposed techniques offer a robust solution for integrating memory protection into computing devices while maintaining efficiency.
