Invention Title:

Universal Mobile Game Controller

Publication number:

US20240207725

Publication date:
Section:

Human necessities

Class:

A63F13/24

Inventor:

Assignee:

Applicant:

Drawings (4 of 22)

Smart overview of the Invention

A universal mobile game controller is designed to work seamlessly with various computing device operating systems, such as Android and iOS, through a common connector like USB-C. This innovation eliminates the need for different controllers for each operating system, allowing users to utilize a single device across multiple platforms. The controller can also facilitate communication with applications running on the computing device, enhancing its functionality.

Functionality of the Controller

The controller serves as an interface for users to interact with content on their devices, whether that content is stored locally or streamed from remote sources. It can be employed in various contexts, including gaming, video playback, and audio listening. This versatility makes it suitable for a range of devices, from mobile phones and tablets to more stationary systems like gaming consoles.

System Architecture

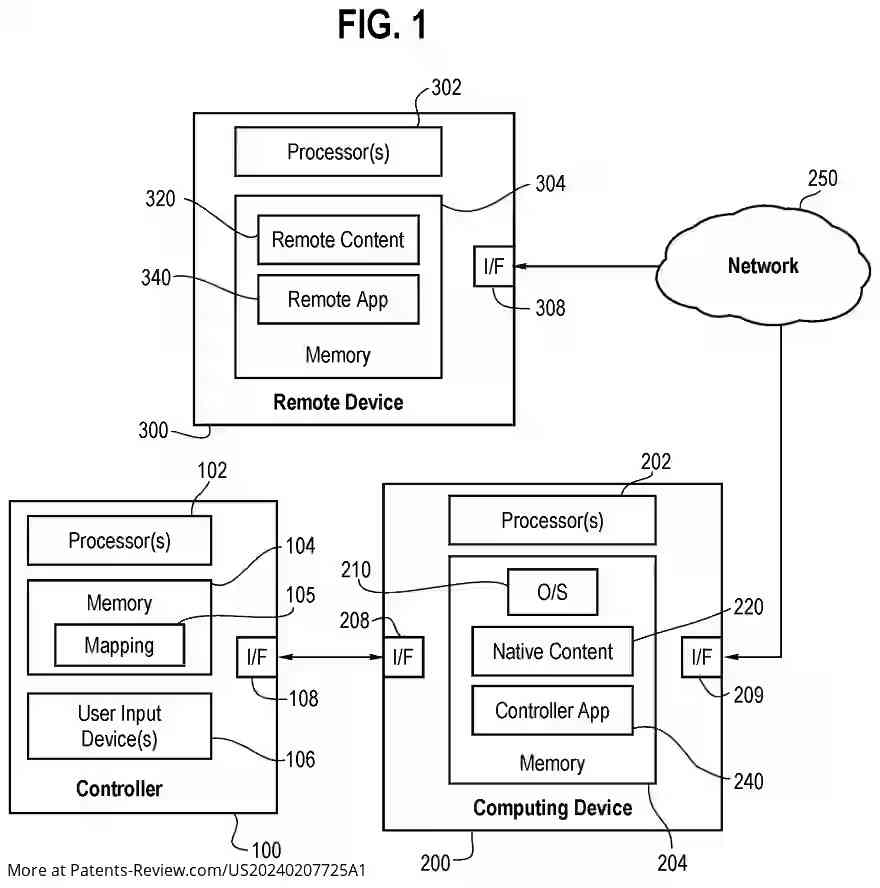

The architecture includes three main components: the user controller, the computing device, and a remote device. These elements communicate through wired or wireless connections. The controller contains processors, memory, and user input devices that allow users to engage with content effectively. Meanwhile, the computing device runs an operating system and applications that support interaction with the controller.

Exemplary Computing Environment

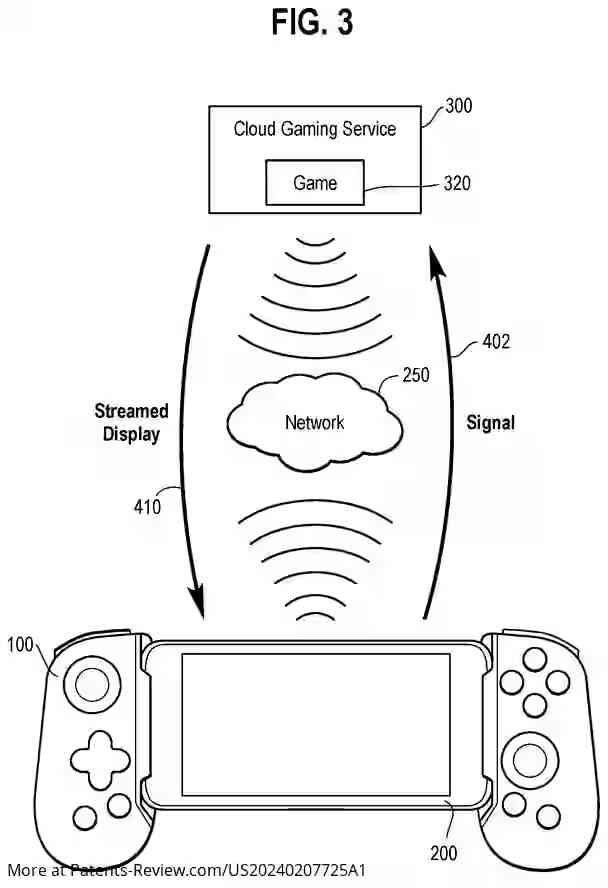

The computing environment consists of a user controller equipped with various input devices, a computing device that may be a mobile or stationary type, and a remote device that can be a cloud-based system. Each component interacts through networks or direct connections, enabling seamless content consumption and control. The flexibility in design allows for distributed processing across multiple devices.

Design Features

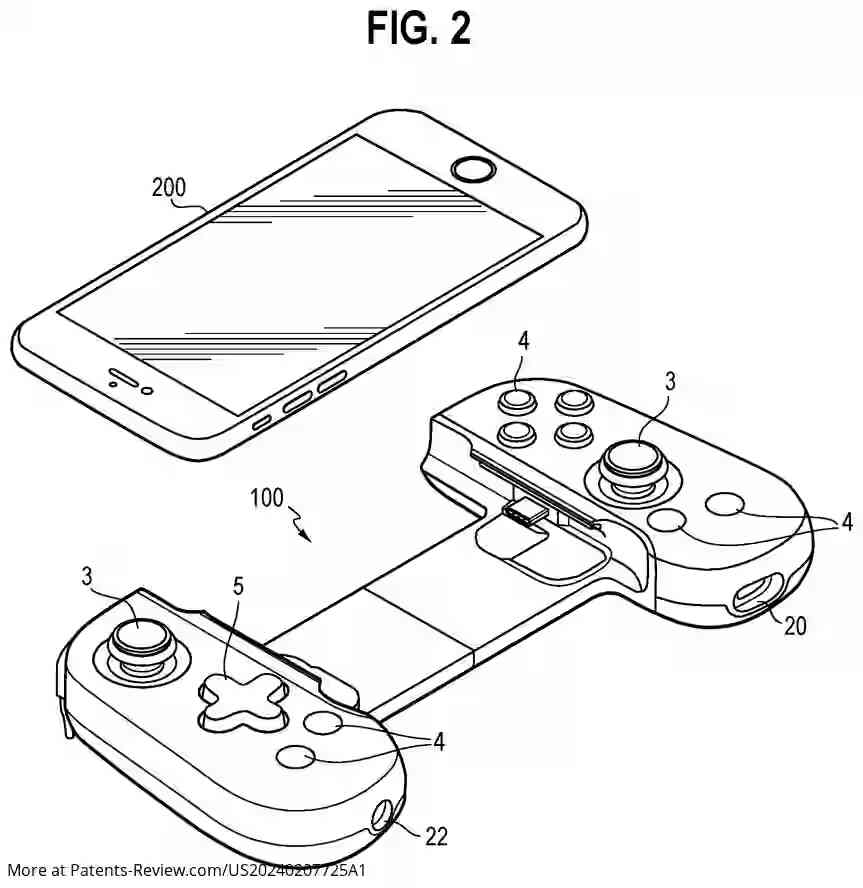

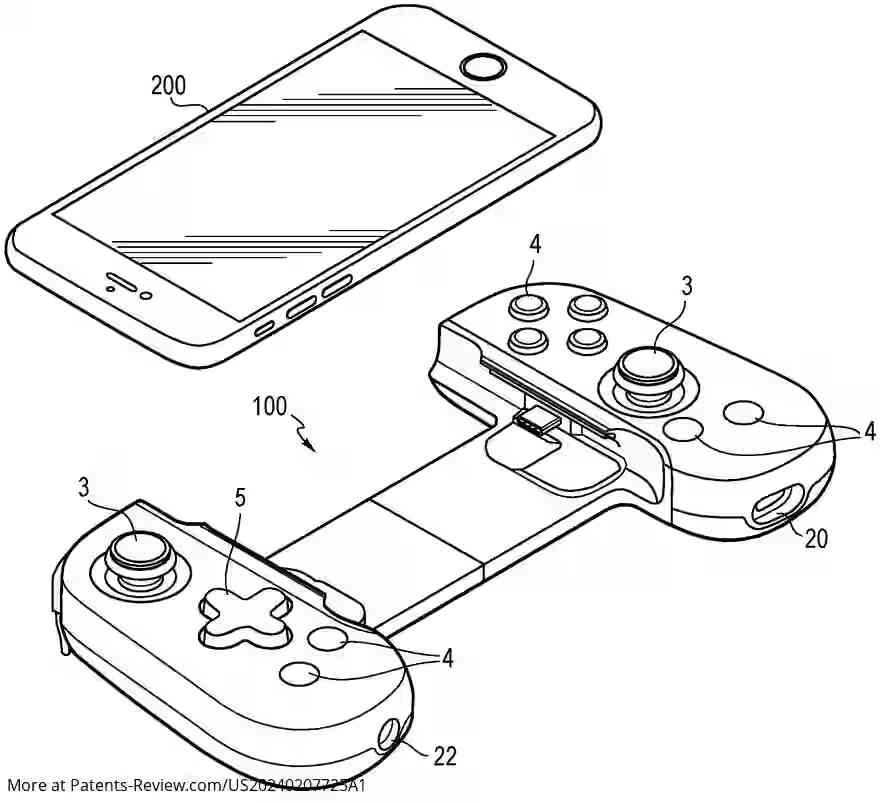

The handheld game controller features multiple user input devices like buttons and joysticks and can be retractable to accommodate mobile phones. It includes additional functionalities such as a pass-through charging port and a headphone jack. While this design exemplifies one approach, the controller can also connect wirelessly or take various forms to suit different user preferences and technological advancements.
