Invention Title:

LIGHT MATRIX BUILDING BLOCK FOR A MODULAR TOY OR EDUCATIONAL CONSTRUCTION SET

Publication number:

US20240246005

Publication date:
Section:

Human necessities

Class:

A63H33/22

Inventors:

Assignee:

Applicant:

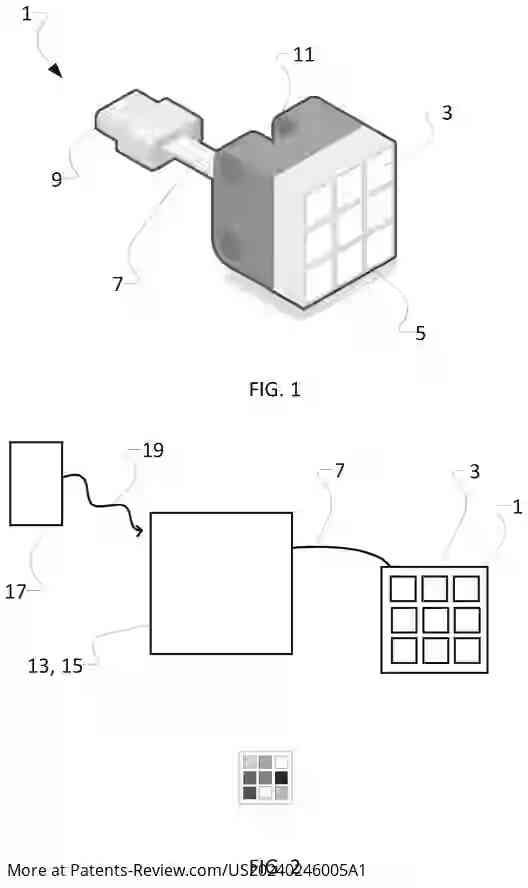

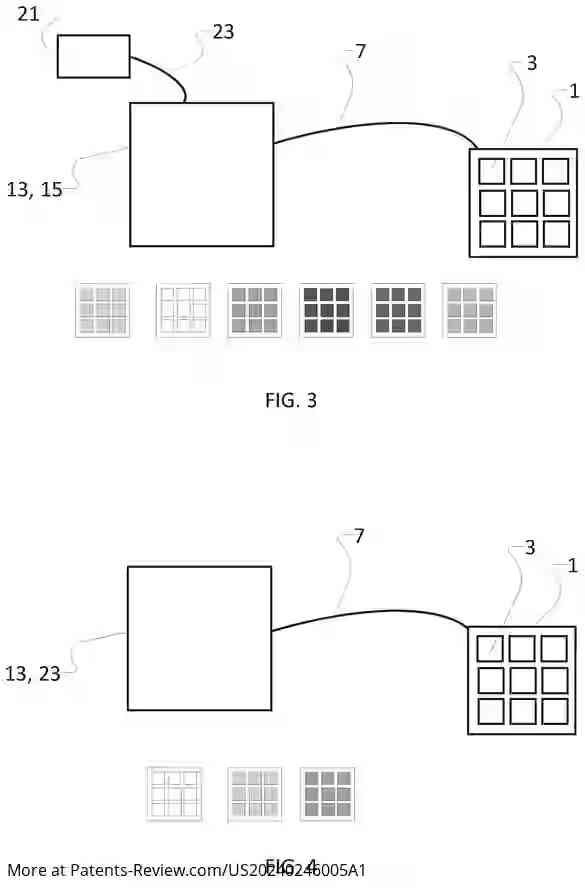

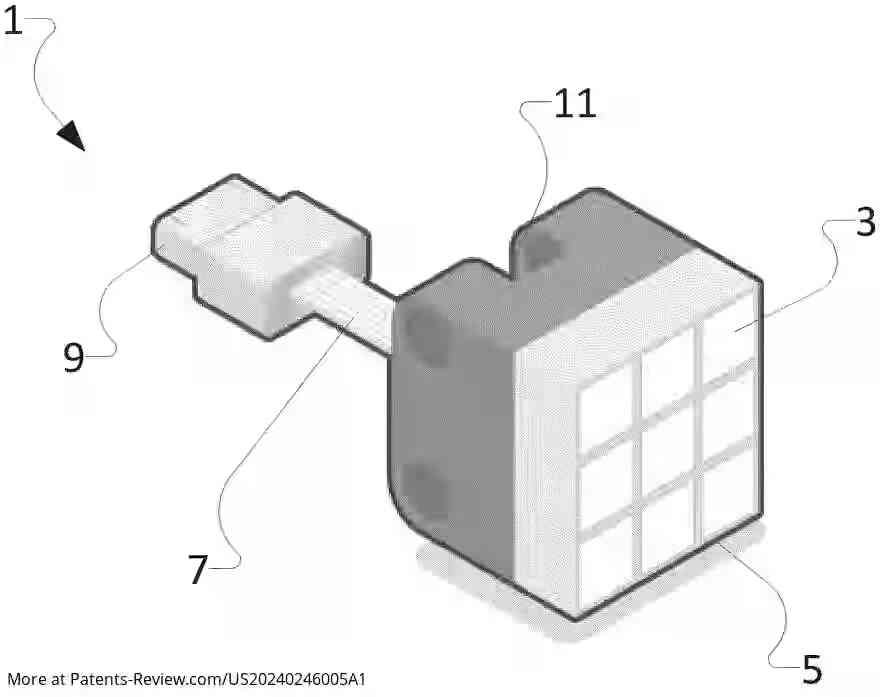

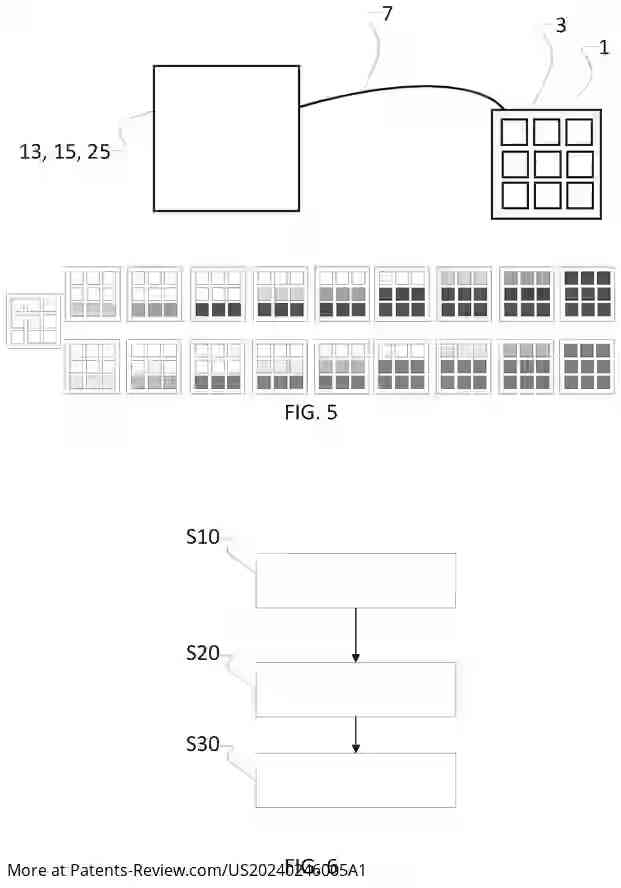

Drawings (4 of 4)

Smart overview of the Invention

A light matrix building block is designed for modular toy or educational construction sets, featuring multiple light emitting elements. Each element can be individually controlled for color and intensity, allowing for a dynamic play experience. The block is capable of receiving and decoding digital information, which is encoded in a single byte, to adjust the light settings accordingly.

Design and Functionality

The building block includes attachment parts that enable it to interlock with other blocks, both electronic and non-electronic. The light emitting elements are arranged in a two-dimensional grid, which can take various shapes such as squares or rectangles. This arrangement allows for simultaneous control of the lights, enabling varied visual effects during play or learning activities.

Communication Capabilities

The light matrix building block can communicate through wired or wireless connections, making it versatile in its interactions with other devices. When connected to a building block device, such as a battery or sensor, it can adjust its lighting based on the status and capabilities of that device. This feature enhances the overall functionality of the construction set, providing real-time feedback and interaction.

Integration with Other Devices

A modular construction set incorporating this light matrix block can include a building block hub device that manages data transfer between components. The hub can wirelessly transmit information using Bluetooth Low Energy (BLE), ensuring efficient communication with reduced power consumption. Additionally, battery devices may be integrated to supply power while also facilitating digital communication, further enhancing the interactive experience of the construction set.
