Invention Title:

METHOD AND ARRANGEMENTS FOR GRAPHICALLY VISUALIZING DATA TRANSFER IN A 3D VIRTUAL ENVIRONMENT

Publication number:

US20240257442

Publication date:
Section:

Physics

Class:

G06T15/20

Inventors:

Assignee:

Applicant:

Drawings (4 of 8)

Smart overview of the Invention

A method has been developed for visually representing data transfer within a 3D virtual environment. This system allows a user to experience the environment through a first-person perspective (1PP) while utilizing a device that tracks their real-world field of view. The method enables the identification of data transfers between multiple devices, which are then graphically represented in the virtual space, enhancing user interaction and understanding of data flow.

Technical Context

The technology pertains to 3D extended reality (XR) environments, which blend real and virtual elements for various applications, including education and entertainment. Users typically engage with these environments through devices like VR headsets or AR glasses, which provide immersive experiences. Tracking the user's physical movements allows for a seamless transition between their real-world orientation and the virtual perspective they are experiencing.

Data Transfer Visualization

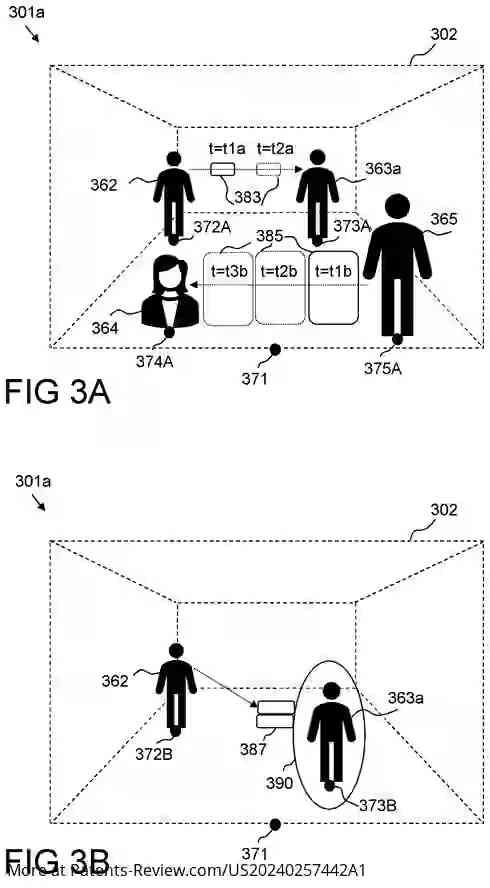

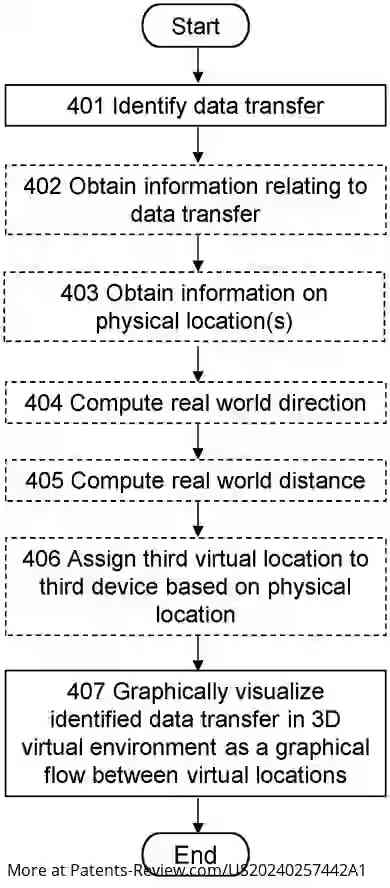

In this method, when a data transfer is detected between two devices, it is visually represented as a flow within the 3D environment. This graphical flow connects virtual locations associated with each device, allowing users to intuitively understand the transfer process. By maintaining their immersive experience, users can monitor and analyze these data exchanges without interruption.

Enhanced User Experience

The solution addresses challenges faced by users in mixed reality settings, where understanding data transfers can be complicated. Traditionally, users might need to remove their XR equipment to access information about data transfers. This method allows users to remain engaged in the virtual environment while receiving important notifications about ongoing data activities.

Applications and Benefits

This innovative approach supports more effective communication and troubleshooting within 3D virtual environments. Users can easily monitor the status of data transfers and identify their sources or destinations without disrupting their immersive experience. The technology is expected to be beneficial in various scenarios, including virtual meetings and collaborative tasks in 3D spaces.
