AUTOMATIC AT-HOME ACNE TREATMENT DEVICE

Smart overview of the Invention

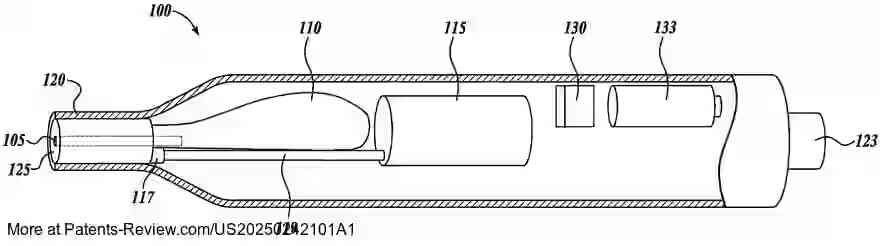

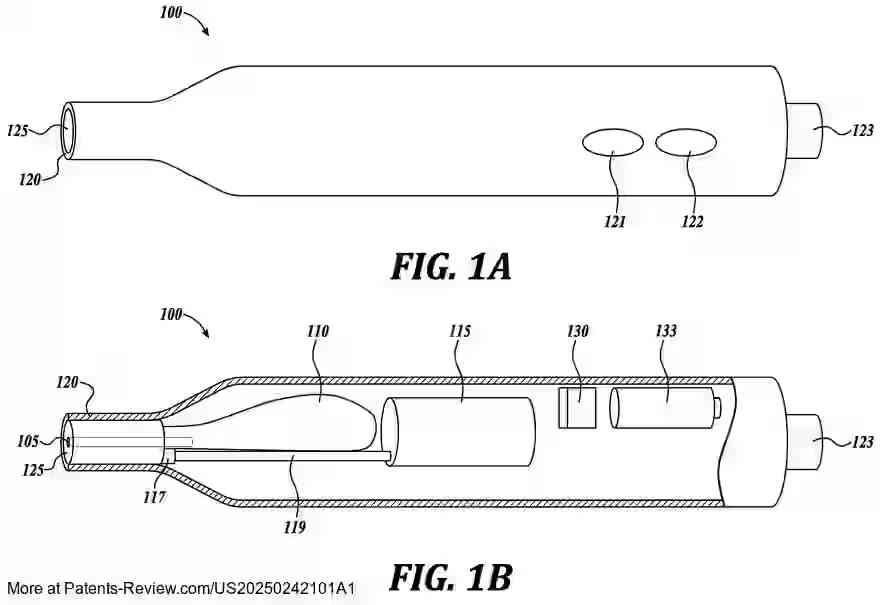

The automatic at-home acne treatment device is designed to efficiently manage acne through a multifunctional applicator. This applicator integrates several components: microneedles for skin penetration, an optical sensor for acne detection, a suction mechanism to extract acne material, and a chamber for containment. Additionally, it includes a remedy system for applying acne treatments and a light source for light therapy. A processor coordinates these elements, ensuring targeted treatment of affected skin areas by guiding the applicator's actions.

Design and Functionality

The device features a treatment plane that contacts the skin, surrounding the microneedles. Some models include massagers on the treatment plane to massage the skin. The suction mechanism may utilize a piezoelectric pump, while the remedy system contains reservoirs and valves to control remedy application. The microneedles are often arranged in an array for effective penetration, and the light source can emit various wavelengths such as blue, near-infrared (NIR), infrared (IR), or ultraviolet (UV) light.

Smart Device Integration

The system is compatible with smart devices that store treatment data, which can be anonymized or de-identified. These devices can detect skin irritation indicators and prevent treatment if necessary. They also manage treatment intervals by comparing elapsed time between sessions to a set threshold, ensuring safe usage by preventing overly frequent treatments.

Method of Use

Treatment involves detecting acne and applying multiple therapies: skin penetration with microneedles, suctioning acne material, light therapy application, and remedy administration. The method may also include massaging affected areas and storing treatment data. Safety features prevent treatment if irritation indicators are detected or if treatments occur too frequently. User identification ensures that only authorized users can operate the device.

Additional Features

The applicator includes actuators for power and treatment application control. A button facilitates microneedle operation, allowing for sanitary removal or retention. This design aims to simplify acne management at home while minimizing potential skin damage from improper handling or excessive treatment.
